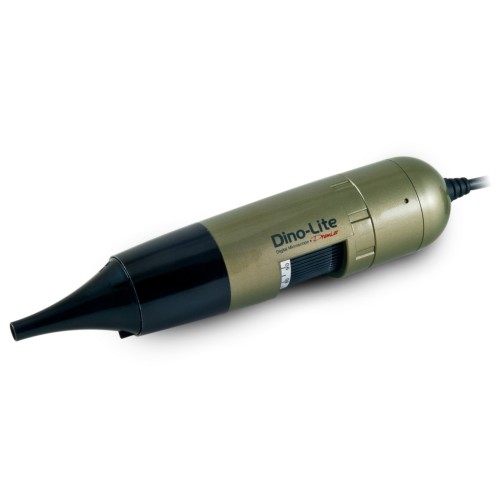

EarScope Pro
Marque:
Dino-Lite Medical
Code produit:
MEDL4E
L'EarScope Pro(MEDL4E) est une solution compacte et sûre pour regarder le tympan et l'oreille extérieure. Le MEDL4E est le modèle Pro avec une résolution de 1,3 megapixel et un agrandissement de 55 ~ 90x. Ce modèle est livré avec des spéculums jetables de 3, 4 et 5 mm (10 de chaque).
| Lighting | |
|---|---|
| Light/ LED type | White |
| Number of LEDs | 6 |
| LED on/off switchable: | Yes |
| Infrared filter | IR cut-filter >650 nm |
| Diffuser available | No |
| Polarizer | No |
| Optics | |
| Magnification | 55-90x |
| Lens type | Glass with anti-reflection coating |
| Sensor | |
| Sensor type | CMOS |
| Resolution | 1.3 Megapixel (1280x1024) |
| Maximum frame rate | 30 fps |
| Compatibility | |
| Interface | USB 2.0 |
| Operating system | Windows 7, 8, 10 & 11, MacOS 10.9 and up |
| Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Supported image formats (Windows) | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats (Windows) | WMV, FLV, SWF |
| Supported image formats (MacOS) | JPEG, PNG |
| Supported video formats (MacOS) | MOV |
| Imaging standards | DirectShow, UVC |
| Housing | |
| Housing material | Composite/plastic housing |
| Magnification lock | Yes |
| Dimensions | 10.5cm (L) x 3.2cm (D) |
| Weight | 95 g |
| Cable length | 1.8m |
| Features | |
| Special feature | No |
| Measurement | No |
| Calibration | No |
| Microtouch sensor | Yes |
| Information | |
| Package contents | Microscope, carry pouch, 10x 3 mm specula, 10x 4 mm specula, 10x 5 mm specula, software CD, user manual |
| Warranty information | 2 years European warranty |
| Regulatory approval | Medical Device Class 1 – Medical Devices Regulation (EU) 2017/745 |
| Price range | €800,00 - €1000,00 |
