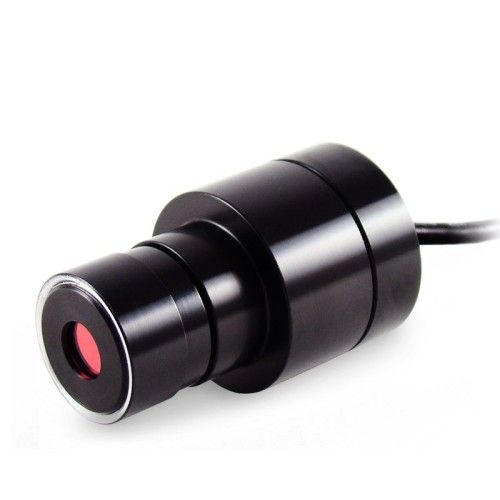

AM4023

Brand: Dino-Lite
Product Code: AM4023

The Dino-Eye is a range of digital eyepiece cameras. You can replace the ocular (eyepiece) of regular microscopes with the Dino-Eye which turns the regular microscope into a digital microscope. The AM4023 connects via USB to your PC and fits 23mm eyepiece tubes. The DinoCapture software is bundled with the product.


USBMag 10 2205 megapixel

EDOF


Optics
Magnification Yes, built-in
Lens type Glass with Anti-Reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Imaging standards DirectShow, UVC
Wifi No
Housing
Housing material Metal body
Dimensions 48 mm (H) x 23 mm (D)
Weight 95 g
Cable length 1.8 m
Mounting type: Inside ocular/tube
Inner diameter 23 mm
Features
Measurement Yes
Calibration Yes
Microtouch sensor No
Information
Package contents DinoEye eyepiece camera, carry pouch, software CD, calibration target, user manual
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Accessory range: DinoEye Eyepieces
Price range €150,00 - €250,00
