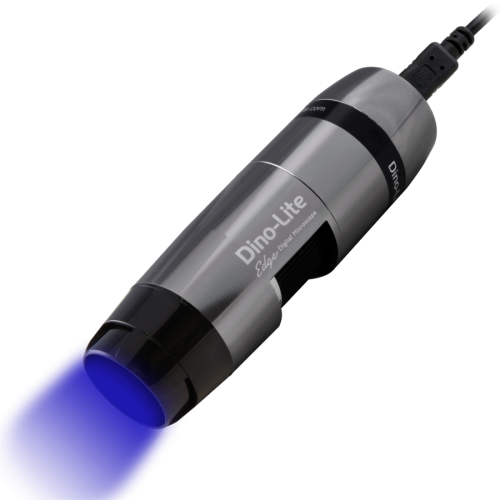

AM4517MT-RFCW
Marca:
Código del producto:
AM4517MT-RFCW
Detecte la fluorescencia roja excitada por luz azul con el microscopio digital de alta sensibilidad AM4517MT-RFCW, que ofrece un rango de magnificación de 20x a 220x. Está equipado con luces de excitación de 435 nm y un filtro de emisión de 615 nm a 650 nm, lo que permite la visualización de sondas fluorescentes con grandes desplazamientos de Stokes, como mKeima, FuraRed y LSSmKate1. Este modelo incluye la función AMR para facilitar las mediciones.
The main features of the AM4517MT-RFCW are:
- 1.3 Megapixel
- High Sensitivity Sensor
- Large Stokes Shift (LSS) Red Fluorescene
- Switchable White Light
- Automatic Magnification Readout (AMR)
- Robust Metal Housing
| Magnification (Mag) | Working Distance (WD) * | Field of View (FOV) x | Field of View (FOV) y | Depth of Field (DOF) |
|---|---|---|---|---|
| Listed values may differ slightly | * Without front cap | Unit = mm | ||
| 20x | 59.8 | 19.53 | 14.65 | 7.05 |
| 30x | 33.1 | 13.02 | 9.77 | 3.36 |
| 40x | 20.5 | 9.77 | 7.32 | 2.02 |
| 50x | 13.4 | 7.81 | 5.86 | 1.38 |
| 60x | 9.2 | 6.51 | 4.88 | 1.01 |
| 70x | 6.7 | 5.58 | 4.19 | 0.79 |
| 80x | 5.1 | 4.88 | 3.66 | 0.64 |
| 90x | 4.1 | 4.34 | 3.26 | 0.53 |
| 100x | 3.7 | 3.91 | 2.93 | 0.45 |
| 110x | 3.6 | 3.55 | 2.66 | 0.39 |
| 120x | 3.7 | 3.26 | 2.44 | 0.34 |
| 130x | 4.1 | 3.01 | 2.25 | 0.30 |
| 140x | 4.5 | 2.79 | 2.09 | 0.27 |
| 150x | 5.2 | 2.60 | 1.95 | 0.25 |
| 160x | 5.9 | 2.44 | 1.83 | 0.22 |
| 170x | 6.7 | 2.30 | 1.72 | 0.21 |
| 180x | 7.5 | 2.17 | 1.63 | 0.19 |
| 190x | 8.5 | 2.06 | 1.54 | 0.18 |
| 200x | 9.4 | 1.95 | 1.46 | 0.16 |
| 210x | 10.5 | 1.86 | 1.40 | 0.15 |
| 220x | 11.5 | 1.78 | 1.33 | 0.14 |
