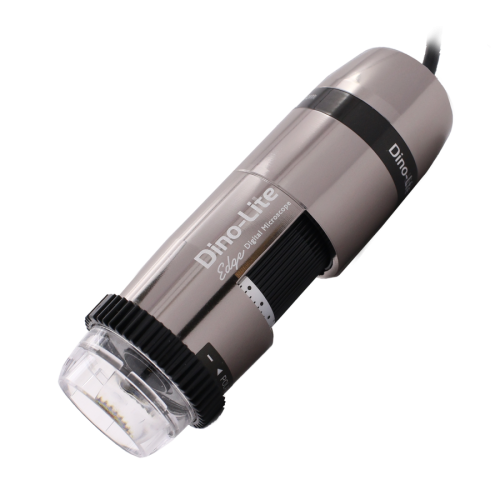

DermaScope® Polarizer HR (MEDL7DW)

Codice del prodotto: MEDL7DW

Il DermaScope® Polarizer HR (MEDL7DW) di Dino-Lite ha una fotocamera da 5 megapixel per scattare immagini nitide con maggiori dettagli ed è dotato di un filtro di polarizzazione integrato e completamente regolabile, per ridurre notevolmente l'effetto abbagliante della pelle.

Il MEDL7DW è disponibile con due diversi livelli di ingrandimento (circa da 20x a 45x) senza la necessità di cambiare la distanza per la pelle. Se viene utilizzato il cappuccio supplementare, è possibile scattare anche un'immagine di una maggiore superficie, con un ingrandimento di circa 10x. Il MEDL7DW si distingue dal MEDL4DW anche per l'elegante struttura metallica. Il DermaScope® Polarizer HR di Dino-Lite è adatto per ogni dermatologo, ma di solito è acquistato in pratica da chi ha esigenze extra sulle apparecchiature e vuole disporre delle più recenti caratteristiche e funzionalità.


USBMag 10 2205 megapixel EDOFEDRAMR PolariserFLC


Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Polarizer Yes, linear
Optics
Magnification 10-50x
Lens type Glass with Anti-Reflection coating
Sensor
Sensor type CMOS
Resolution 5 Megapixel (2592x1944)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV (max 1.3MP)
Imaging standards DirectShow, UVC
Housing
Housing material Aluminium alloy housing
Magnification lock Yes
Dimensions 10.5 cm (L) x 3.2 cm (D)
Weight 140 g
Cable length 1.8 m
Features
Special feature No
Measurement No
Calibration No
Microtouch sensor Yes
Information
Package contents Microscope, carry pouch, software CD, user manual, N3C-C- Closed cap, N3C-L- Long cap
Warranty information 2 years European warranty
Accessory range: Dino-Lite DermaScope
Regulatory approval: Medical Device Class 1 – Medical Devices Regulation (EU) 2017/745
Price range €900,00 - €1100,00
