AM4517MT-YFGW

Merk:
Productcode: AM4517MT-YFGW

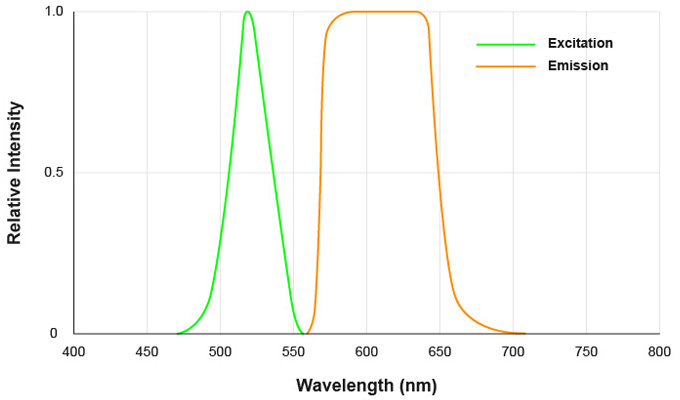

Detecteer fluorescentie-emissies van groen-geel tot rood met de hooggevoelige digitale microscoop AM4517MT-YFGW met vergroting van 20x tot 220x. Het biedt 520 nm excitatie licht en een emissiefilter van 570 nm tot 650 nm, waarmee de visualisatie van fluorescerende sondes zoals EYFP, mCherry en Alexa Fluor 594 mogelijk is. Dit model is uitgerust met de AMR-functie om metingen te vergemakkelijken.




USB Polariserfluorescence


The main features of the AM4517MT-YFGW are:

  • 1.3 Megapixel
  • High Sensitivity Sensor
  • Green-Yellow/Red Fluorescence Detection
  • Switchable White Light
  • Automatic Magnification Readout (AMR)
  • Robust Metal Housing
Magnification RateWorking Distance *  Field of View(x)  Field of View(y)  Depth of Field
Listed values may differ slightly
* Without front cap     Unit = mm
20x 59.8 19.53 14.65 7.05
30x 33.1 13.02 9.77 3.36
40x 20.5 9.77 7.32 2.02
50x 13.4 7.81 5.86 1.38
60x 9.2 6.51 4.88 1.01
70x 6.7 5.58 4.19 0.79
80x 5.1 4.88 3.66 0.64
90x 4.1 4.34 3.26 0.53
100x 3.7 3.91 2.93 0.45
110x 3.6 3.55 2.66 0.39
120x 3.7 3.26 2.44 0.34
130x 4.1 3.01 2.25 0.30
140x 4.5 2.79 2.09 0.27
150x 5.2 2.60 1.95 0.25
160x 5.9 2.44 1.83 0.22
170x 6.7 2.30 1.72 0.21
180x 7.5 2.17 1.63 0.19
190x 8.5 2.06 1.54 0.18
200x 9.4 1.95 1.46 0.16
210x 10.5 1.86 1.40 0.15
220x 11.5 1.78 1.33 0.14
Verlichting
Licht / LED-type 520 nm excitation + white
Aantal leds 7 FL + 1 White
LED aan / uit schakelbaar: Yes
Infrarood filter No
Diffusor beschikbaar No
Emissiefilter 570 nm ~ 650 nm
Polarisator No
Fluorophores EYFP, mCherry, and Alexa Fluor 594
Optiek
Magnification 20x ~ 220x
Werkafstand Standard
Type lens Glass with anti-reflection coating
Sensor
Sensortype CMOS
Resolutie 1.3 Megapixel (1280 x 960)
Maximale framesnelheid 30 fps
Compatibiliteit
Interface USB 2.0
Besturingssysteem Windows 7, 8, 10 & 11, MacOS 10.9 and up
Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Ondersteunde beeldformaten (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Ondersteunde videoformaten (Windows) WMV, FLV, SWF
Ondersteunde beeldformaten (MacOS) JPEG, PNG
Ondersteunde videoformaten (MacOS) MOV
Behuizing
Materiaal van de behuizing Metal housing
Vergrotingsslot Yes
Afmetingen 104 mm (H) x 32 mm (D)
Gewicht 90g
Kabellengte 1.8m
Kenmerken
Bijzonderheid Automatic Magnification Readout (AMR)
Meting Yes
Kalibratie Yes
Microtouch-sensor Yes
Informatie
Inhoud van de verpakking Microscope, carry pouch, calibration target, user manual, N3C-C (Close Cap) N3C-EB (Extended Open Black Cap) N3C-LB (Black Long Cap) N3C-OB (Black Open Cap)
Garantie-informatie 2 years European warranty
Regelgevende goedkeuring CE, FCC, ROHS
