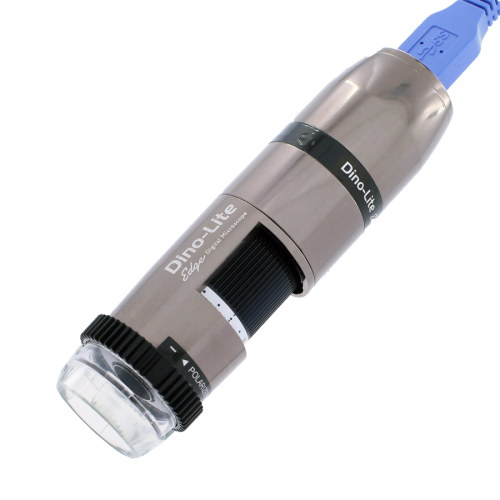

AM73915MZT4
Brand:
Dino-Lite
Product Code:
AM73915MZT4
As magnification increases, targets with uneven surfaces are often out of focus due to the limited depth of field. The 5.0 MP Edge 3.0 AM73915MZT4 400x - 470x microscope offers a click-to-focus functionality for automatic focusing to the point of interest and also features EDOF for generating focus-stacked images. Equipped with a polarizer and advanced features like DPQ, eFLC, AMR, and EDR, Edge 3.0 AM73915MZT4 is a robust tool ready to tackle a variety of tasks.
Note: EDOF, EDR, and DPQ are available on Windows PC only.
The main features of the AM73915MZT4 are:
• 5.0 Megapixels
• Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
• Automatic Magnification Reading (AMR)
• 400x-470x magnification
• Enhanced Flexible LED Control (eFLC)
• Integrated polarizer (anti-reflection)
• And more...
(*EDOF/EDR only functions under Windows OS)
| MAGNIFICATION RATE | WORKING DISTANCE * | FIELD OF VIEW(X) | FIELD OF VIEW(Y) | DEPTH OF FIELD |
|
400 |
5.68 |
0.977 |
0.732 |
0.041 |
|
410 |
6.63 |
0.953 |
0.715 |
0.040 |
|
420 |
7.59 |
0.93 |
0.698 |
0.039 |
|
430 |
8.55 |
0.909 |
0.681 |
0.038 |
|
440 |
9.51 |
0.888 |
0.666 |
0.038 |
|
450 |
9.62 |
0.868 |
0.651 |
0.037 |
|
460 |
9.56 |
0.849 |
0.637 |
0.036 |
|
470 |
9.50 |
0.831 |
0.623 |
0.036 |
| Listed values may differ slightly | * Without front cap | Unit = mm | ||
| Lighting | |
|---|---|
| Light/ LED type | White |
| Number of LEDs | 8 |
| Polarizer | Yes, linear |
| Optics | |
| Magnification | 400x ~ 470x |
| Sensor | |
| Sensor type | CMOS |
| Resolution | 5 Megapixel (2560 x 1920) |
| Maximum frame rate | 15 fps at 5 MP, YUY2 (USB 3.0) 45 fps at 1.3 MP, YUY2 (USB 3.0) 15 fps at 1.3 MP, YUY2 (USB 2.0) |
| Compatibility | |
| Interface | USB 3.0, Cable included** |
| Operating system | Windows 7/8/10/11 macOS 10.14 or later |
| Operating system | Windows 7, 8, 10 & 11, MacOS 10.12 and up |
| Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Supported image formats (Windows) | BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM |
| Supported video formats (Windows) | WMV, FLV, SWF |
| Supported image formats (MacOS) | PNG, JPEG |
| Supported video formats (MacOS) | MOV |
| Housing | |
| Housing material | Metal housing |
| Dimensions | 11.9 cm (H) x 3.3 cm (D) |
| Weight | 110 g |
| Features | |
| Calibration | Yes |
| Microtouch sensor | Yes |
| Information | |
| Warranty information | 2 years European warranty |
| Regulatory approval | CE, FCC, ROHS |
| Price range | €1200,00 - €1500,00 |
