AM7515MZT2P-APL

Brand:
Product Code: AM7515MZT2P

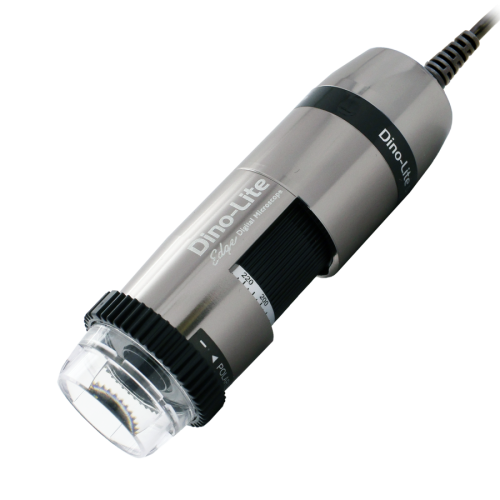

Integrated with Aim Point Laser (APL), the AM7515MZT2P eases the tasks of locating and focusing the target under the microscope. The AM7515MZT2P is a 5MP microscope with a 130x ~ 220x magnification range featuring AMR, FLC, APL, metal housing and a polarizer.


USBMag 10 2205 megapixel EDOFAMR PolariserFLCexch-cap

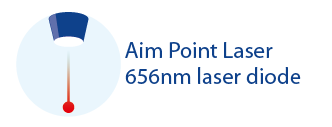

The AM7515MZT2P is part of the universal range and with its standard working distance and wide magnification range from 130x ~ 220x, it is suitable for a wide range of applications. Because of the built-in polarization filter this model is ideal when working with shiny or reflective objects such as metal, plastic, glass, jewelry, electronics, etc. The AMR function is of particular importance when the measurement functions are frequently used. The Aim Point Laser (APL) is an integrated trough-lens laser projecting a red dot that provides a visual reference point for the positioning and focusing of the target.

The main features of the AM7515MZT2P are:

• 5 Megapixel Edge sensor
• 130x ~ 220x magnification
• Integrated polarizer
• Aluminum housing
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC)
• Aim Point Laser (APL)
• Extensive measurement functions
• Calibration
• Exchangeable front caps
• And more...

MAGNIFICATION RATE WORKING DISTANCE 1 WORKING DISTANCE 2* FIELD OF VIEW(X) FIELD OF VIEW(Y) DEPTH OF FIELD
Listed values may differ slightly   * Without front cap     Unit = mm
130 - 4.5 3.0 2.2 -
140 - 5.0 2.8 2.1 -
150 - 5.6 2.6 1.9 -
160 - 6.3 2.4 1.8 -
170 - 7.1 2.3 .17 -
180 - 8.0 2.2 1.6 -
190 - 8.9 2.1 1.5 -
200 - 9.9 2.0 1.5 -
210 - 10.9 1.9 1.4 -
220 - 11.9 1.8 1.3 0.1
Listed values may differ slightly   * Without front cap     Unit = mm
Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available Yes (N3C-D included)
Emission filter No
Polarizer Yes, linear
Laser Pointer 656nm laser diode
Optics
Magnification 130x ~ 220x
Macro zoom No
Working distance Standard
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 5 Megapixel (2592x1944)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.14 and up
Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV (max 1.3MP)
Imaging standards DirectShow, UVC
Wifi Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
Housing material Metal housing
Dimensions 10.7cm (L) x 3.2cm (D)
Weight 140gr
Cable length 1.8m
Features
Special feature Automatic Magnification Reading (AMR), Flexible LED Control (FLC). Aim Pointer Laser (APL)
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe Yes
Information
Package contents Microscope, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-E- Extension cap, N3C-L- Long cap, N3C-S- Side light cap
Warranty information 2 years European warranty
Regulatory approval: CE, FCC, ROHS
Price range €1000,00 - €1200,00
