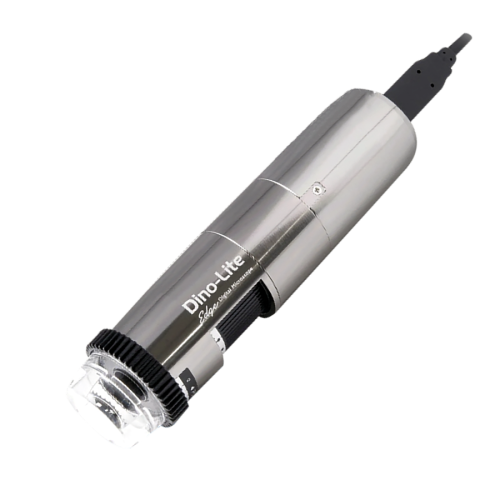

AM8117MZTL
Brand:
Dino-Lite
Product Code:
AM8117MZTL Edge Plus
The AM8117MZTL 8-megapixel long working distance digital microscope captures images with stunning clarity and sharpness. Its advanced sensor technology, combined with the eFLC feature and adjustable polarizer, make the AM8117MZTL a reliable tool for high-quality imaging,
The main features of the AM8117MZTL are:
• 8 Megapixels
• High Optical Resolution
• Enhanced Flexible LED Control (eFLC)
• Long Working Distance (LWD) Optics
• Adjustable Polarizer
• Robust Metal Housing
• 10x ~ 140x magnification (Edge shading occurs below 25x when previewing in 16:9 windows.)
• And more...
| MAGNIFICATION RATE | WORKING DISTANCE * | FIELD OF VIEW(X) | FIELD OF VIEW(Y) | DEPTH OF FIELD |
|
10 |
238.3 |
60.69 |
34.14 |
25.99 |
|
20 |
115.4 |
30.35 |
17.07 |
6.94 |
|
30 |
75.9 |
20.23 |
11.38 |
3.29 |
|
40 |
57.1 |
15.17 |
8.53 |
1.98 |
|
50 |
46.7 |
12.14 |
6.83 |
1.35 |
|
60 |
40.5 |
10.11 |
5.69 |
0.99 |
|
70 |
36.7 |
8.67 |
4.88 |
0.77 |
|
80 |
34.3 |
7.59 |
4.27 |
0.62 |
|
90 |
32.9 |
6.74 |
3.79 |
0.52 |
|
100 |
32.3 |
6.07 |
3.41 |
0.44 |
|
110 |
32.1 |
5.52 |
3.10 |
0.38 |
|
120 |
32.3 |
5.06 |
2.85 |
0.33 |
|
130 |
32.8 |
4.67 |
2.63 |
0.30 |
|
140 |
33.5 |
4.34 |
2.44 |
0.27 |
| Listed values may differ slightly | * Without front cap | Unit = mm | ||
| Lighting | |
|---|---|
| Light/ LED type | White |
| Number of LEDs | 8 |
| Optics | |
| Magnification | 10x ~ 140x |
| Working distance | 238.3 ~ 33.5 mm |
| Sensor | |
| Sensor type | CMOS |
| Resolution | 8 Megapixel (3840 x 2160) |
| Maximum frame rate | 10 fps at 8.0 MP, MJPEG 25 fps at 2.0 MP, MJPEG |
| Compatibility | |
| Interface | USB 2.0 |
| Operating system | Windows 10/11 |
| Supported image formats (Windows) | BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM |
| Supported video formats (Windows) | WMV, FLV, SWF |
| Housing | |
| Housing material | Metal housing |
| Dimensions | 130 mm (H) x 33 mm (D) |
| Weight | 120 g |
| Features | |
| Measurement | Yes |
| Calibration | Yes |
| Microtouch sensor | Yes |
| Information | |
| Package contents | N3C-C (Close Cap) N3C-D (Diffuser Cap) N3C-D2 (Opal Diffuser Cap) N3C-E (Extended Open Cap) N3C-L (Long Cap) N3C-O (Open Cap) N3C-S (Sidelight Cap) |
| Warranty information | 2 years European warranty |
| Regulatory approval: | CE, FCC, ROHS |
| Price range | €1149,00 - €1349,00 |
