AF4915ZTL

Brand: Dino-Lite
Product Code: AF4915ZTL

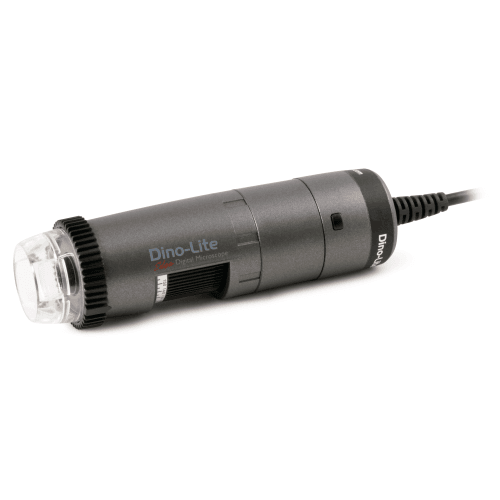

The Dino-Lite AF4915ZTL is part of the Long Working Distance (LWD) series and connects to your device via USB. The AF4915ZTL is Wireless-ready, but requires the (optional) WF-20 to make it a fully wireless solution.


USBMag 10 2205 megapixel EDOFEDRAMR EDOFEDRAMR


The AF4915ZTL is equipped with premium features such as Extended Depth of Field (EDOF), Extended Dynamic Range (EDR), Flexible LED Control (FLC), integrated polarizer, extensive measurement functionality and Automatic Magnification Reading (AMR) for measurement-intensive applications.

The main features of the AF4915ZTL are:

• Wireless-ready, requires the WF-20 adapter (optional)
• 10-140x magnification
• 1.3 Megapixel Edge sensor
• Adjustable polarizer
• Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC)
• And more...

(*EDOF/EDR only functions under Windows OS)

Magnification RateWorking Distance *  Field of View(x)  Field of View(y)  Depth of Field
Listed values may differ slightly
* Without front cap     Unit = mm
10 234.5 39.0 31.2 12
20 112.5 19.5 15.6 4.5
30 72.5 13.0 10.4 3.1
40 54.5 9.8 7.8 1.8
50 43.5 7.8 6.2 1.2
60 37.5 6.5 5.2 0.9
70 33.7 5.6 4.5 0.6
80 31.3 4.9 3.9 0.5
90 29.9 4.3 3.5 0.37
100 29.2 3.9 3.1 0.28
110 29.1 3.5 2.8 0.22
120 29.3 3.3 2.6 0.17
130 29.8 3.0 2.4 0.12
140 30.5 2.8 2.2 0.09


Lighting
Light/ LED type White
Light/ LED type Wireless-ready, requires the WF-20 adapter (optional)
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available Yes (N3C-D included)
Emission filter No
Polarizer Yes, linear
Optics
Magnification 10-140x
Macro zoom No
Working distance Long
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.12 and up”
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Imaging standards DirectShow, UVC
Housing
Housing material Composite/ plastic housing
Magnification lock Yes
Dimensions 11.4cm (L) x 3.3cm (D)
Weight 111g
Cable length 1.8m
Features
Special feature Automatic Magnification Reading (AMR), Extended Dynamic Range (EDR), Extended Depth of Field (EDOF), Flexible LED Control (FLC)
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe No
Information
Package contents Microscope, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-E- Extension cap, N3C-L- Long cap, N3C-S- Side light cap
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €700,00 - €800,00
