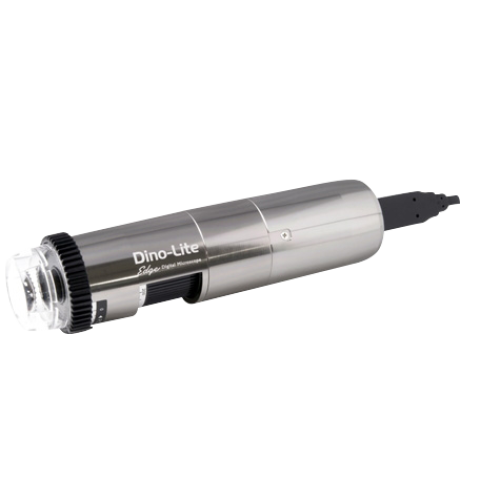

AM8917MZT
Brand:
Product Code:
AM8917MZT Edge Plus
Pushing the limits of handheld digital microscopy, the 8-megapixel AM8917MZT is a high-resolution digital microscope capable of revealing the minute details of the target. The microscope also delivers outstanding color fidelity, enhancing the imaging experience with detailed and natural-looking results. Ready to perform a wide range of tasks, AM8917MZT offers a polarizer as well as DPQ, EDOF, EDR, AMR, and eFLC.
The main features of the AM8917MZT are:
• 8 Megapixels
• High Optical Resolution
• Automatic Magnification Reading (AMR)
• Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
• Enhanced Flexible LED Control (eFLC)
• Adjustable Polarizer
• Robust Metal Housing
• 10x ~ 220x magnification (Edge shading occurs below 25x when previewing in 16:9 windows.)
• And more...
| M | WD | FOV (x) | FOV (y) | DOF |
|---|---|---|---|---|
| 10 | 142.6 | 60.69 | 34.14 | 26.01 |
| 20 | 60.1 | 30.35 | 17.07 | 7.01 |
| 30 | 33.6 | 20.23 | 11.38 | 3.34 |
| 40 | 21.0 | 15.17 | 8.53 | 2.01 |
| 50 | 14.0 | 12.14 | 6.83 | 1.37 |
| 60 | 9.8 | 10.11 | 5.69 | 1.01 |
| 70 | 7.3 | 8.67 | 4.88 | 0.78 |
| 80 | 5.7 | 7.59 | 4.27 | 0.63 |
| 90 | 4.8 | 6.74 | 3.79 | 0.52 |
| 100 | 4.3 | 6.07 | 3.41 | 0.44 |
| 110 | 4.2 | 5.52 | 3.10 | 0.38 |
| 120 | 4.3 | 5.06 | 2.85 | 0.34 |
| 130 | 4.7 | 4.67 | 2.63 | 0.31 |
| 140 | 5.2 | 4.34 | 2.44 | 0.28 |
| 150 | 5.8 | 4.05 | 2.28 | 0.26 |
| 160 | 6.5 | 3.79 | 2.13 | 0.24 |
| 170 | 7.3 | 3.57 | 2.01 | 0.22 |
| 180 | 8.1 | 3.37 | 1.90 | 0.20 |
| 190 | 9.1 | 3.20 | 1.80 | 0.19 |
| 200 | 10.0 | 3.03 | 1.71 | 0.18 |
| 210 | 11.0 | 2.89 | 1.63 | 0.17 |
| 220 | 12.1 | 2.76 | 1.55 | 0.16 |
| Lighting | |
|---|---|
| Light/ LED type | White |
| Number of LEDs | 8 |
| Optics | |
| Magnification | 10x ~ 220x |
| Working distance | 142.6 ~ 12.1 mm |
| Sensor | |
| Sensor type | CMOS |
| Resolution | 8 Megapixel (3840 x 2160) |
| Maximum frame rate | 10 fps at 8.0 MP, MJPEG 25 fps at 2.0 MP, MJPEG |
| Compatibility | |
| Interface | USB 2.0 |
| Operating system | Windows 10/11 |
| Supported image formats (Windows) | BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM |
| Supported video formats (Windows) | WMV, FLV, SWF |
| Housing | |
| Housing material | Metal housing |
| Dimensions | 130 mm (H) x 33 mm (D) |
| Weight | 120 g |
| Features | |
| Measurement | Yes |
| Calibration | Yes |
| Microtouch sensor | Yes |
| Information | |
| Package contents | N3C-C (Close Cap) N3C-D (Diffuser Cap) N3C-D2 (Opal Diffuser Cap) N3C-E (Extended Open Cap) N3C-L (Long Cap) N3C-O (Open Cap) N3C-S (Sidelight Cap) |
| Warranty information | 2 years European warranty |
| Regulatory approval: | CE, FCC, ROHS |
| Price range | €1500,00 - €1700,00 |
