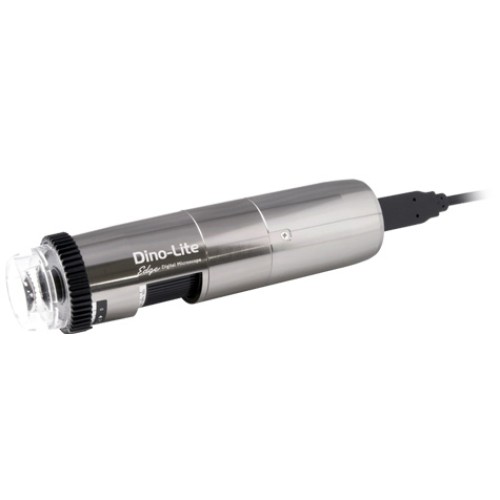

AM8117MZTL

Brand: Dino-Lite
Product Code: AM8117MZTL Edge Plus

The AM8117MZTL 8-megapixel long working distance digital microscope captures images with stunning clarity and sharpness. Its advanced sensor technology, combined with the eFLC feature and adjustable polarizer, make the AM8117MZTL a reliable tool for high-quality imaging,


eflc1408mp measurement8ledspolarizelwd


The main features of the AM8117MZTL are:

• 8 Megapixels
• High Optical Resolution
• Enhanced Flexible LED Control (eFLC)
• Long Working Distance (LWD) Optics
• Adjustable Polarizer
• Robust Metal Housing
• 10x ~ 140x magnification (Edge shading occurs below 25x when previewing in 16:9 windows.)
• And more...

MAGNIFICATION RATE WORKING DISTANCE *   FIELD OF VIEW(X)   FIELD OF VIEW(Y)   DEPTH OF FIELD

10

238.3

60.69

34.14

25.99

20

115.4

30.35

17.07

6.94

30

75.9

20.23

11.38

3.29

40

57.1

15.17

8.53

1.98

50

46.7

12.14

6.83

1.35

60

40.5

10.11

5.69

0.99

70

36.7

8.67

4.88

0.77

80

34.3

7.59

4.27

0.62

90

32.9

6.74

3.79

0.52

100

32.3

6.07

3.41

0.44

110

32.1

5.52

3.10

0.38

120

32.3

5.06

2.85

0.33

130

32.8

4.67

2.63

0.30

140

33.5

4.34

2.44

0.27

Listed values may differ slightly * Without front cap   Unit = mm
Lighting
Light/ LED type White
Number of LEDs 8
Optics
Magnification 10x ~ 140x
Working distance 238.3 ~ 33.5 mm
Sensor
Sensor type CMOS
Resolution 8 Megapixel (3840 x 2160)
Maximum frame rate 10 fps at 8.0 MP, MJPEG 25 fps at 2.0 MP, MJPEG
Compatibility
Interface USB 2.0
Operating system Windows 10/11
Supported image formats (Windows) BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
Supported video formats (Windows) WMV, FLV, SWF
Housing
Housing material Metal housing
Dimensions 130 mm (H) x 33 mm (D)
Weight 120 g
Features
Measurement Yes
Calibration Yes
Microtouch sensor Yes
Information
Package contents N3C-C (Close Cap) N3C-D (Diffuser Cap) N3C-D2 (Opal Diffuser Cap) N3C-E (Extended Open Cap) N3C-L (Long Cap) N3C-O (Open Cap) N3C-S (Sidelight Cap)
Warranty information 2 years European warranty
Regulatory approval: CE, FCC, ROHS
Price range €1149,00 - €1349,00
