AM4517MT-BFCW
Brand:
Product Code:
AM4517MT-BFCW

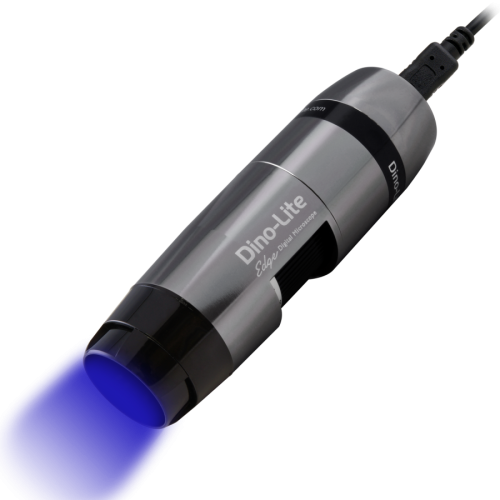

Detect a variety of fluorescence emissions with the AM4517MT-BFCW high-sensitivity 20x ~ 220x digital microscope. Equipped with 435 nm excitation lights and a 475 nm ~ 650 nm emission filter, this model captures clear images of samples labeled with fluorescent probes such as eCFP, Alexa Fluor 430, and Fura Red. This model features AMR to ease measurements.

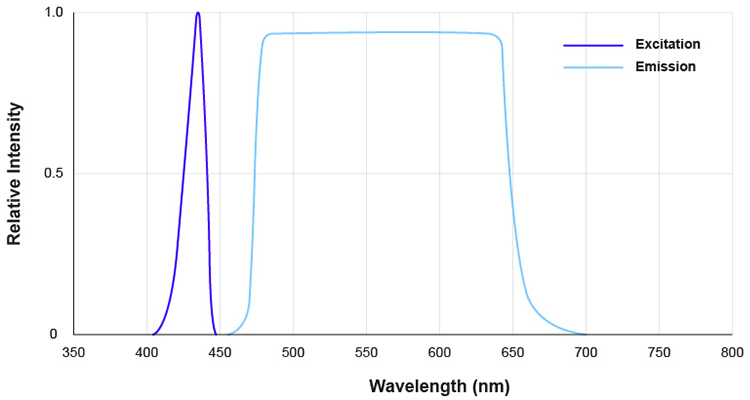

Designed for precision fluorescence imaging, this system features a high-sensitivity sensor for detecting low fluorescence emissions, wide-ranging fluorescence detection with 435 nm excitation lights, and a 475–650 nm emission filter. A switchable white LED aids in target focusing, while Automatic Magnification Readout (AMR) ensures accurate measurements. Housed in a durable anodized aluminum alloy, it offers EMI shielding and resistance to impacts and abrasions.
The main features of the AM4517MT-BFCW are:
- 1.3 Megapixel
- High Sensitivity Sensor
- Wide-Ranging Fluorescence Detection
- Switchable White Light
- Automatic Magnification Readout (AMR)
- Robust Metal Housing
| Magnification Rate | Working Distance * | Field of View(x) | Field of View(y) | Depth of Field |
|---|---|---|---|---|
| Listed values may differ slightly |
* Without front cap | Unit = mm | ||
| 20x | 59.8 | 19.53 | 14.65 | 7.05 |
| 30x | 33.1 | 13.02 | 9.77 | 3.36 |
| 40x | 20.5 | 9.77 | 7.32 | 2.02 |
| 50x | 13.4 | 7.81 | 5.86 | 1.38 |
| 60x | 9.2 | 6.51 | 4.88 | 1.01 |
| 70x | 6.7 | 5.58 | 4.19 | 0.79 |
| 80x | 5.1 | 4.88 | 3.66 | 0.64 |
| 90x | 4.1 | 4.34 | 3.26 | 0.53 |
| 100x | 3.7 | 3.91 | 2.93 | 0.45 |
| 110x | 3.6 | 3.55 | 2.66 | 0.39 |
| 120x | 3.7 | 3.26 | 2.44 | 0.34 |
| 130x | 4.1 | 3.01 | 2.25 | 0.30 |
| 140x | 4.5 | 2.79 | 2.09 | 0.27 |
| 150x | 5.2 | 2.60 | 1.95 | 0.25 |
| 160x | 5.9 | 2.44 | 1.83 | 0.22 |
| 170x | 6.7 | 2.30 | 1.72 | 0.21 |
| 180x | 7.5 | 2.17 | 1.63 | 0.19 |
| 190x | 8.5 | 2.06 | 1.54 | 0.18 |
| 200x | 9.4 | 1.95 | 1.46 | 0.16 |
| 210x | 10.5 | 1.86 | 1.40 | 0.15 |
| 220x | 11.5 | 1.78 | 1.33 | 0.14 |
| Lighting | |
|---|---|
| Light/ LED type | Excitation (λpeak: 435 nm), 7 LEDs White Light, 1 LED |
| Light/ LED type | 2 years European warranty |
| Number of LEDs | 8 |
| Optics | |
| Magnification | 20x ~ 220x |
| Sensor | |
| Resolution | 1.3 Megapixel (1280 x 960) |
| Maximum frame rate | 30 fps at 1.3 MP, MJPEG 30 fps at VGA, MJPEG |
| Compatibility | |
| Interface | USB 2.0 |
| Operating system | Windows 10/11 macOS 10.14 or later |
| Supported image formats (Windows) | DinoCapture 2.0: BMP, PNG, TIF, JPG DinoCapture 3.0: BMP, PNG, TIF, JPG |
| Supported video formats (Windows) | DinoCapture 2.0: WMV, FLV, SWF DinoCapture 3.0: WMV, MP4 |
| Supported image formats (MacOS) | DinoXcope: PNG, JPEG |
| Supported video formats (MacOS) | DinoXcope: MOV |
| Housing | |
| Magnification lock | Yes |
| Dimensions | 104 mm (H) x 32 mm (D) |
| Weight | 92 g |
| Cable length | 1.8 m |
| Features | |
| Special feature | Automatic Magnification Readout (AMR) |
| Measurement | Yes |
| Calibration | Yes |
| Microtouch sensor | Yes |
| Information | |
| Package contents | Microscope, carry pouch, calibration target, user manual, N3C-C (Close Cap), N3C-E (Extended Open Cap), N3C-LB (Black Long Cap), N3C-OB (Black Open Cap) |
| Regulatory approval: | CE, FCC, ROHS |
| Price range | €1050,00 - €1250,00 |
