AM4517MT-CFVW
Marca:
Código del producto:
AM4517MT-CFVW

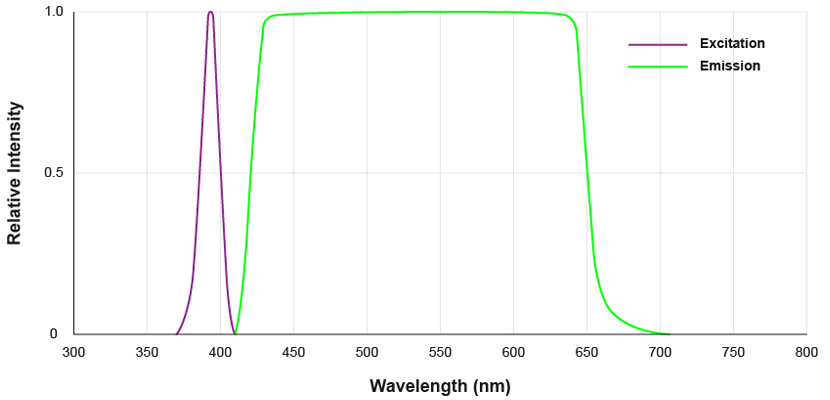

Detecte una gama de fluoróforos desde cian hasta rojo con el microscopio digital de alta sensibilidad AM4517MT-CFVW (20x ~ 220x). Utilizando luces de excitación de 400 nm y un filtro de emisión de 420 nm ~ 650 nm, este modelo es adecuado para una amplia gama de sondas, como Hoechst 33342, GFP y Alexa Fluor 405. Este modelo cuenta con AMR para facilitar las mediciones.
The main features of the AM4517MT-CFVW are:
- 1.3 Megapixel
- High Sensitivity Sensor
- Wide-Ranging Fluorescence Detection
- Switchable White Light
- Automatic Magnification Readout (AMR)
- Robust Metal Housing
| Magnification Rate | Working Distance * | Field of View(x) | Field of View(y) | Depth of Field |
|---|---|---|---|---|
| Listed values may differ slightly |
* Without front cap | Unit = mm | ||
| 20x | 60.3 | 19.53 | 14.65 | 6.34 |
| 30x | 33.6 | 13.02 | 9.77 | 3.03 |
| 40x | 20.9 | 9.77 | 7.33 | 1.82 |
| 50x | 13.9 | 7.81 | 5.86 | 1.24 |
| 60x | 9.7 | 6.51 | 4.88 | 0.91 |
| 70x | 7.1 | 5.58 | 4.19 | 0.71 |
| 80x | 5.5 | 4.88 | 3.66 | 0.57 |
| 90x | 4.0 | 4.34 | 3.26 | 0.47 |
| 100x | 4.1 | 3.91 | 2.93 | 0.40 |
| 110x | 3.6 | 3.55 | 2.66 | 0.35 |
| 120x | 4.1 | 3.26 | 2.44 | 0.31 |
| 130x | 4.5 | 3.01 | 2.25 | 0.27 |
| 140x | 5.0 | 2.79 | 2.09 | 0.24 |
| 150x | 5.6 | 2.60 | 1.95 | 0.22 |
| 160x | 6.3 | 2.44 | 1.83 | 0.20 |
| 170x | 7.1 | 2.30 | 1.72 | 0.18 |
| 180x | 8.0 | 2.17 | 1.63 | 0.17 |
| 190x | 8.9 | 2.06 | 1.54 | 0.16 |
| 200x | 9.9 | 1.95 | 1.47 | 0.15 |
| 210x | 10.9 | 1.86 | 1.40 | 0.14 |
| 220x | 12.0 | 1.78 | 1.33 | 0.13 |
