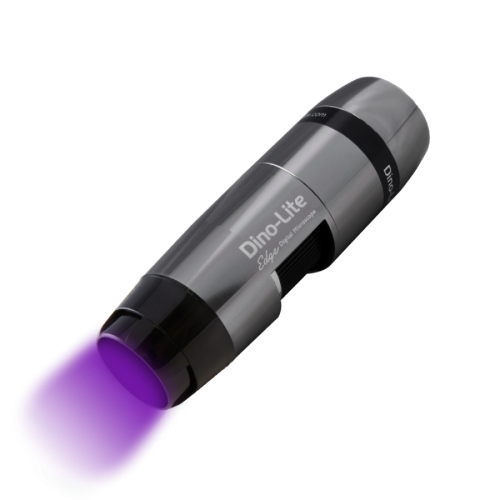

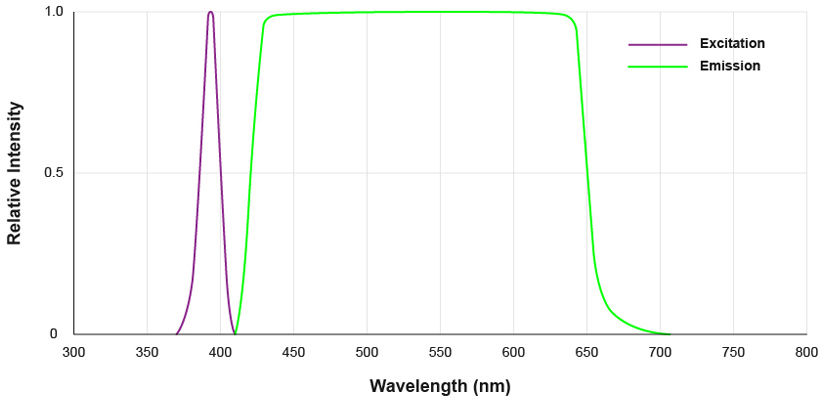

Detecteer een reeks fluoroforen van cyaan tot rood met de AM4517MT-CFVW hoge-sensitiviteit digitale microscoop (20x ~ 220x). Met 400 nm excitatieverlichting en een 420 nm ~ 650 nm emissiefilter is dit model geschikt voor een breed scala aan sondes, zoals Hoechst 33342, GFP en Alexa Fluor 405. Dit model beschikt over AMR om metingen te vergemakkelijken.
The main features of the AM4517MT-CFVW are:
Magnification Rate | Working Distance * | Field of View(x) | Field of View(y) | Depth of Field |
---|---|---|---|---|
Listed values may differ slightly |
* Without front cap | Unit = mm | ||
20x | 60.3 | 19.53 | 14.65 | 6.34 |
30x | 33.6 | 13.02 | 9.77 | 3.03 |
40x | 20.9 | 9.77 | 7.33 | 1.82 |
50x | 13.9 | 7.81 | 5.86 | 1.24 |
60x | 9.7 | 6.51 | 4.88 | 0.91 |
70x | 7.1 | 5.58 | 4.19 | 0.71 |
80x | 5.5 | 4.88 | 3.66 | 0.57 |
90x | 4.0 | 4.34 | 3.26 | 0.47 |
100x | 4.1 | 3.91 | 2.93 | 0.40 |
110x | 3.6 | 3.55 | 2.66 | 0.35 |
120x | 4.1 | 3.26 | 2.44 | 0.31 |
130x | 4.5 | 3.01 | 2.25 | 0.27 |
140x | 5.0 | 2.79 | 2.09 | 0.24 |
150x | 5.6 | 2.60 | 1.95 | 0.22 |
160x | 6.3 | 2.44 | 1.83 | 0.20 |
170x | 7.1 | 2.30 | 1.72 | 0.18 |
180x | 8.0 | 2.17 | 1.63 | 0.17 |
190x | 8.9 | 2.06 | 1.54 | 0.16 |
200x | 9.9 | 1.95 | 1.47 | 0.15 |
210x | 10.9 | 1.86 | 1.40 | 0.14 |
220x | 12.0 | 1.78 | 1.33 | 0.13 |
Verlichting | |
---|---|
Licht / LED-type | 400nm excitation + white |
Licht / LED-type | €1200,00 - €1400,00 |
Aantal leds | 7 FL + 1 White |
LED aan / uit schakelbaar: | Yes |
Infrarood filter | No |
Diffusor beschikbaar | No |
Emissiefilter | 420 nm ~ 650 nm |
Polarisator | No |
Fluorophores | Hoechst 33342, GFP, and Alexa Fluor 405 |
Optiek | |
Magnification | 20x ~ 220x |
Werkafstand | Standard |
Type lens | Glass with anti-reflection coating |
Sensor | |
Sensortype | CMOS |
Resolutie | 1.3 Megapixel (1280 x 960) |
Maximale framesnelheid | 30 fps |
Compatibiliteit | |
Interface | USB 2.0 |
Besturingssysteem | Windows 7, 8, 10 & 11, MacOS 10.9 and up |
Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
Ondersteunde beeldformaten (Windows) | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
Ondersteunde videoformaten (Windows) | WMV, FLV, SWF |
Ondersteunde beeldformaten (MacOS) | JPEG, PNG |
Ondersteunde videoformaten (MacOS) | MOV |
Behuizing | |
Materiaal van de behuizing | Metal housing |
Vergrotingsslot | Yes |
Afmetingen | 104 mm (H) x 32 mm (D) |
Gewicht | Approx. 92 g |
Kabellengte | 1.8m |
Kenmerken | |
Bijzonderheid | Automatic Magnification Readout (AMR) |
Meting | Yes |
Kalibratie | Yes |
Microtouch-sensor | Yes |
Informatie | |
Inhoud van de verpakking | Microscope, carry pouch, calibration target, user manual, N3C-C (Close Cap) N3C-EB (Extended Open Black Cap) N3C-LB (Black Long Cap) N3C-OB (Black Open Cap) |
Garantie-informatie | 2 years European warranty |
Regulatory approval: | CE, FCC, ROHS |
