AM4517MT-DFRW
Marca:
Codice del prodotto:
AM4517MT-DFRW

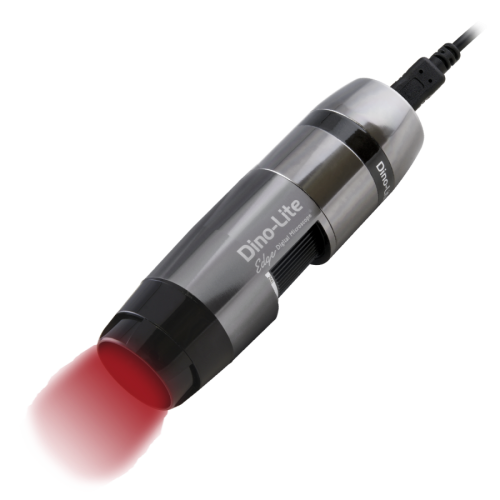

Rileva emissioni di fluorescenza rosso profondo o vicino all’infrarosso (NIR) con il microscopio digitale ad alta sensibilità AM4517MT-DFRW con ingrandimento da 20x a 220x. Dotato di luci di eccitazione a 620 nm e di un filtro di emissione da 655 nm ~ 950 nm, questo modello cattura le emissioni di sonde fluorescenti come CY5, Alexa Fluor 647 e Qdot 655. Questo modello è inoltre dotato di AMR (Lettura Automatica dell’Ingrandimento) per facilitare le misurazioni.
The main features of the AM4517MT-DFRW are:
- 1.3 Megapixel
- High Sensitivity Sensor
- Wide-Ranging Fluorescence Detection
- Switchable White Light
- Automatic Magnification Readout (AMR)
- Robust Metal Housing
| Magnification | Working Distance * | Field of View(x) | Field of View(y) | Depth of Field |
|---|---|---|---|---|
| Listed values may differ slightly |
* Without front cap | Unit = mm | ||
| 20x | 60.4 | 19.53 | 14.65 | 6.34 |
| 30x | 33.7 | 13.02 | 9.77 | 3.03 |
| 40x | 21.1 | 9.77 | 7.33 | 1.82 |
| 50x | 14.1 | 7.81 | 5.86 | 1.24 |
| 60x | 9.9 | 6.51 | 4.88 | 0.91 |
| 70x | 7.3 | 5.58 | 4.19 | 0.71 |
| 80x | 5.7 | 4.88 | 3.66 | 0.57 |
| 90x | 4.8 | 4.34 | 3.26 | 0.47 |
| 100x | 4.3 | 3.91 | 2.93 | 0.40 |
| 110x | 4.2 | 3.55 | 2.66 | 0.35 |
| 120x | 4.3 | 3.26 | 2.44 | 0.31 |
| 130x | 4.7 | 3.01 | 2.25 | 0.27 |
| 140x | 5.2 | 2.79 | 2.09 | 0.24 |
| 150x | 5.8 | 2.60 | 1.95 | 0.22 |
| 160x | 6.5 | 2.44 | 1.83 | 0.20 |
| 170x | 7.3 | 2.30 | 1.72 | 0.18 |
| 180x | 8.2 | 2.17 | 1.63 | 0.17 |
| 190x | 9.1 | 2.06 | 1.54 | 0.16 |
| 200x | 10.1 | 1.95 | 1.47 | 0.15 |
| 210x | 11.1 | 1.86 | 1.40 | 0.14 |
| 220x | 12.1 | 1.78 | 1.33 | 0.13 |
| Lighting | |
|---|---|
| Light/ LED type | 620 nm excitation + white |
| Number of LEDs | 7 FL + 1 White |
| LED on/off switchable: | Yes |
| Infrared filter | No |
| Diffuser available | No |
| Emission filter | 655 nm ~ 950 nm |
| Polarizer | No |
| Fluorophores | Y5, Alexa Fluor 647, and Qdot 655 |
| Optics | |
| Magnification | 20x ~ 220x |
| Macro zoom | No |
| Working distance | Standard |
| Lens type | Glass with anti-reflection coating |
| Sensor | |
| Sensor type | CMOS |
| Resolution | 1.3 Megapixel (1280 x 960) |
| Maximum frame rate | 30 fps |
| Compatibility | |
| Interface | USB 2.0 |
| Operating system | Windows 7, 8, 10 & 11, MacOS 10.9 and up |
| Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Supported image formats (Windows) | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats (Windows) | WMV, FLV, SWF |
| Supported image formats (MacOS) | JPEG, PNG |
| Supported video formats (MacOS) | MOV |
| Housing | |
| Housing material | Metal housing |
| Magnification lock | Yes |
| Dimensions | 104 mm (H) x 32 mm (D) |
| Weight | 90g |
| Cable length | 1.8m |
| Features | |
| Special feature | Automatic Magnification Readout (AMR) |
| Measurement | Yes |
| Calibration | Yes |
| Microtouch sensor | Yes |
| Information | |
| Package contents | Microscope, carry pouch, calibration target, user manual, N3C-C (Close Cap) N3C-EB (Extended Open Black Cap) N3C-LB (Black Long Cap) N3C-OB (Black Open Cap) |
| Warranty information | 2 years European warranty |
| Regulatory approval: | CE, FCC, ROHS |
| Price range | €1100,00 - €1300,00 |
