AM4517MT-GRFBY

Brand:
Product Code: AM4517MT-GRFBY

The AM4517MT-GRFBY is a high-sensitivity digital microscope with a 20x ~ 220x magnification range, designed for detecting green and red fluorescence. Equipped with both 465 nm and 580 nm excitation lights, it’s ideal for visualizing samples labeled with green and red fluorophores, such as GFP and RFP. Featuring AMR, this microscope provides measurement convenience.






The main features of the AM4517MT-GRFBY are:

  • 1.3 Megapixel
  • High Sensitivity Sensor
  • Fluorescence Detection
  • Switchable White Light
  • Automatic Magnification Readout (AMR)
  • Robust Metal Housing
  • Dual-Band Emission Filter
Magnification RateWorking Distance *  Field of View(x)  Field of View(y)  Depth of Field
Listed values may differ slightly
* Without front cap     Unit = mm
20x 60.3 19.53 14.65 6.34
30x 33.6 13.02 9.77 3.03
40x 20.9 9.77 7.33 1.82
50x 13.9 7.81 5.86 1.24
60x 9.7 6.51 4.88 0.91
70x 7.1 5.58 4.19 0.71
80x 5.5 4.88 3.66 0.57
90x 4.6 4.34 3.26 0.47
100x 4.1 3.91 2.93 0.40
110x 4.0 3.55 2.66 0.35
120x 4.1 3.26 2.44 0.31
130x 4.5 3.01 2.25 0.27
140x 5.0 2.79 2.09 0.24
150x 5.6 2.60 1.95 0.22
160x 6.3 2.44 1.83 0.20
170x 7.1 2.30 1.72 0.18
180x 8.0 2.17 1.63 0.17
190x 8.9 2.06 1.54 0.16
200x 9.9 1.95 1.47 0.15
210x 10.9 1.86 1.40 0.14
220x 12.0 1.78 1.33 0.13
Lighting

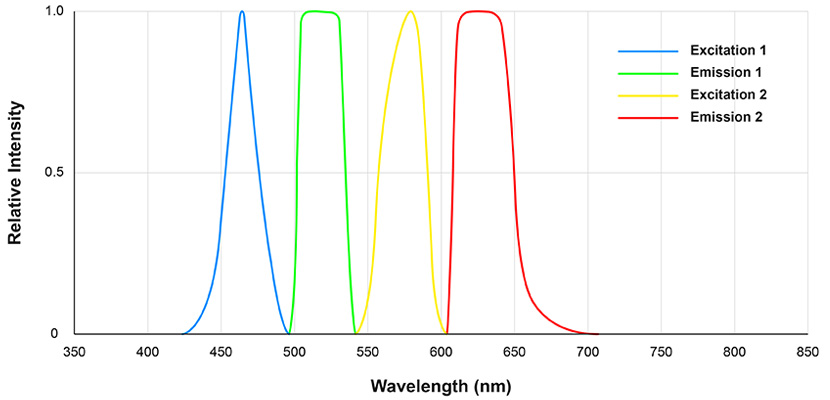

Light/ LED type 465 nm and 580 nm excitation
Number of LEDs 4 465 nm + 4 580 nm
LED on/off switchable: Yes
Infrared filter No
Diffuser available No
Emission filter green (505 nm ~ 535 nm) and red (610 nm ~ 650 nm) fluorescence
Polarizer No
Fluorophores GFP and RFP
Optics
Magnification 20x ~ 220x
Working distance Standard
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280 x 960)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Housing
Housing material Metal housing
Magnification lock Yes
Dimensions 104 mm (H) x 32 mm (D)
Weight 92g
Cable length 1.8m
Features
Special feature Automatic Magnification Readout (AMR)
Measurement Yes
Calibration Yes
Microtouch sensor Yes
Information
Package contents Microscope, carry pouch, calibration target, user manual, N3C-C (Close Cap) N3C-EB (Extended Open Black Cap) N3C-LB (Black Long Cap) N3C-OB (Black Open Cap)
Warranty information 2 years European warranty
Regulatory approval: CE, FCC, ROHS
Price range
