AM4517MT-G2FBW
Brand:
Product Code:
AM4517MT-G2FBW
Detect green fluorescence emissions with the AM4517MT-G2FBW high-sensitivity 20x ~ 220x digital microscope. It features 465 nm excitation lights and a 510 nm ~ 545 nm emission filter, suitable for capturing emissions from fluorescent probes such as GFP, FITC, and YFP. This model features AMR to ease measurements.
Green Fluorescence Detection
The high-intensity 465 nm (λpeak) excitation lights and the 510 nm ~ 545 nm band-pass emission filter enable the detection of green fluorescence probes.

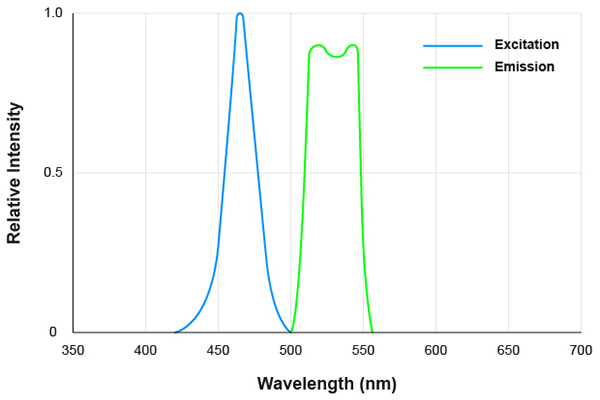

Excitation Light and Emission Filter Spectra
| MAGNIFICATION RATE | WORKING DISTANCE * | FIELD OF VIEW(X) | FIELD OF VIEW(Y) | DEPTH OF FIELD |
|---|---|---|---|---|
| Listed values may differ slightly |
* Without front cap | Unit = mm | ||
| 20 | 59.8 | 19.53 | 14.65 | 7.05 |
| 30 | 33.1 | 13.02 | 9.77 | 3.36 |
| 40 | 20.5 | 9.77 | 7.32 | 2.02 |
| 50 | 13.4 | 7.81 | 5.86 | 1.38 |
| 60 | 9.2 | 6.51 | 4.88 | 1.01 |
| 70 | 6.7 | 5.58 | 4.19 | 0.79 |
| 80 | 5.1 | 4.88 | 3.66 | 0.64 |
| 90 | 4.1 | 4.34 | 3.26 | 0.53 |
| 100 | 3.7 | 3.91 | 2.93 | 0.45 |
| 110 | 3.6 | 3.55 | 2.66 | 0.39 |
| 120 | 3.7 | 3.26 | 2.44 | 0.34 |
| 130 | 4.1 | 3.01 | 2.25 | 0.3 |
| 140 | 4.5 | 2.79 | 2.09 | 0.27 |
| 150 | 5.2 | 2.6 | 1.95 | 0.25 |
| 160 | 5.9 | 2.44 | 1.83 | 0.22 |
| 170 | 6.7 | 2.3 | 1.72 | 0.21 |
| 180 | 7.5 | 2.17 | 1.63 | 0.19 |
| 190 | 8.5 | 2.06 | 1.54 | 0.18 |
| 200 | 9.4 | 1.95 | 1.46 | 0.16 |
| 210 | 10.5 | 1.86 | 1.4 | 0.15 |
| 220 | 11.5 | 1.78 | 1.33 | 0.14 |
