AM4917MT-BFCW
Brand:
Product Code:
AM4917MT-BFCW

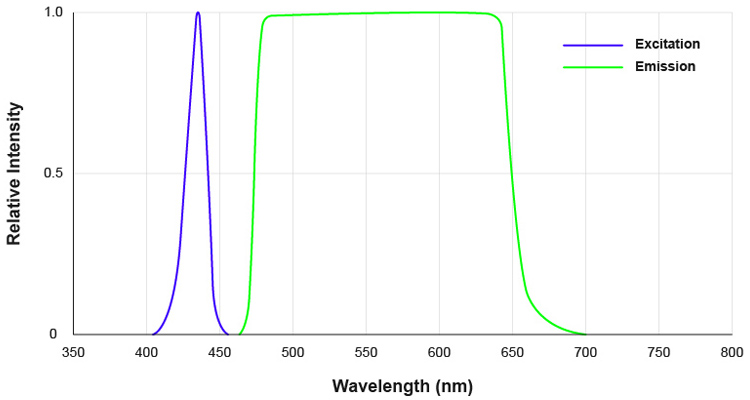

The AM4917MT-BFCW is a fluorescence microscope equipped with extended depth of field technology, enhancing the clarity of the sample visualization. It offers 435 nm excitation lights and a 475 nm ~ 650 nm emission filter, ideal for detecting a variety of fluorescence emissions, such as eCFP, Alexa Fluor 430, and Fura Red. AM4917MT-BFCW comes with AMR, EDOF, EDR, Auto and Manual Refocusing, and DPQ.
The main features of the AM4917MT-BFCW are:
- 1.3 Megapixel
- High Sensitivity Sensor
- Wide-Ranging Fluorescence Detection
- Switchable White Light
- Depth Acquisition (DPQ)
- Extended Depth of Field (EDOF)
- Extended Dynamic Range (EDR)
- Auto and Manual Refocusingt
- Automatic Magnification Readout (AMR)
- Robust Metal Housing
| Magnification Rate | Working Distance * | Field of View(x) | Field of View(y) | Depth of Field |
|---|---|---|---|---|
| Listed values may differ slightly |
* Without front cap | Unit = mm | ||
| 20x | 61.4 | 19.53 | 14.65 | 6.35 |
| 30x | 34.6 | 13.02 | 9.77 | 3.03 |
| 40x | 22.0 | 9.77 | 7.33 | 1.82 |
| 50x | 14.9 | 7.81 | 5.86 | 1.24 |
| 60x | 10.7 | 6.51 | 4.88 | 0.91 |
| 70x | 8.1 | 5.58 | 4.19 | 0.72 |
| 80x | 6.5 | 4.88 | 3.66 | 0.60 |
| 90x | 5.6 | 4.34 | 3.26 | 0.51 |
| 100x | 5.2 | 3.91 | 2.93 | 0.44 |
| 110x | 5.0 | 3.55 | 2.66 | 0.39 |
| 120x | 5.2 | 3.26 | 2.44 | 0.34 |
| 130x | 5.5 | 3.01 | 2.25 | 0.31 |
| 140x | 6.0 | 2.79 | 2.09 | 0.28 |
| 150x | 6.6 | 2.60 | 1.95 | 0.26 |
| 160x | 7.4 | 2.44 | 1.83 | 0.24 |
| 170x | 8.2 | 2.30 | 1.72 | 0.22 |
| 180x | 9.0 | 2.17 | 1.63 | 0.21 |
| 190x | 10.0 | 2.06 | 1.54 | 0.19 |
| 200x | 10.9 | 1.95 | 1.47 | 0.18 |
| 210x | 11.9 | 1.86 | 1.40 | 0.17 |
| 220x | 13.0 | 1.78 | 1.33 | 0.16 |
